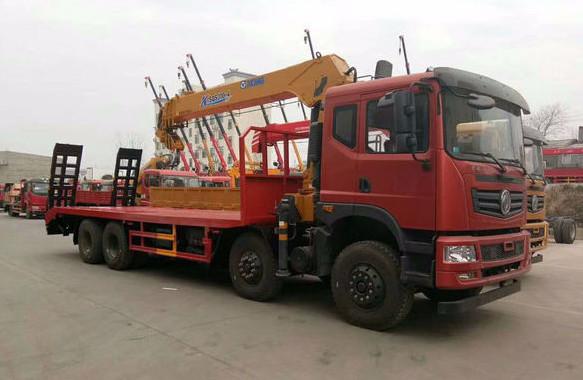

3 - 20 Tons Cummins Weichai Yuchai Engine Dongfeng Used Trcuk-mounted Crane
This Truck-mounted crane Chassis available brand:DONGFENG, FOTON, CAMC, HOWO, JAC, BEIBEN, HUAYI,etc
Diesel Engine: Cummins, Wechai, Yuchai availalbe.
We have a wide range of quality used trucks in our stock. One of the benefits of purchasing an used crane truck from us is the vehicle support provided to you in the event of any issue.
| Specification |
| Overall length(mm) | 8300 |
| Overall width(mm) | 2450 |
| Overall height(mm) | 550 |
| Engine Data |
| Model | Yuchai |
| Rate power | 103/2600Kw/rpm |
| Maximum output torque | 800/(1200-1700)N.m/rpm |
| Driving Parameters |
| Max Travelling Speed | 90Km/h |
| Minimum turning radius8m | 8m |
| Maximum gradeability | 34% |
| Fuel consumption | 18L |
| Performance Parameter |
| lift height(basic arm) | 12m |
| lift height(longest arm) | 15m |
| Number of arm(basic) | 5 |
| Operating Speed Parameter |
| Maximum speed of main winch single rope | >140m/min |
| Full extension of the lifting boom | 32/35s |
| Lift all the heavy arms | 30/50s |
| turning speed | 2r/min |
| Horizontal leg full extension | 20/15s |
| Vertical legs fully closed | 20/15s |
All used crane trucks for sale undergo rigid testing for any problems and comprehensive repairs are undertaken before the truck is listed for sale and we use only genuine original factory spare parts.
Regular Trade Terms:
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Payment terms: T/T before shipment.
Delivery time: normally 7 working days after full payment received.
Used Vehicles we can provide
Used Buses like yutong bus,coaster bus, coach bus,tour bus,mini bus,school bus etc.
Used trucks like dump trucks, sinotruck, cargo truck, tank truck, tractor trucks, crane truck, concrete mixer trucks and other special purpose trucks, etc.
also we have sources of used SUVs and pickup cars and Sourcing used vehicles based on your demands service is available.
